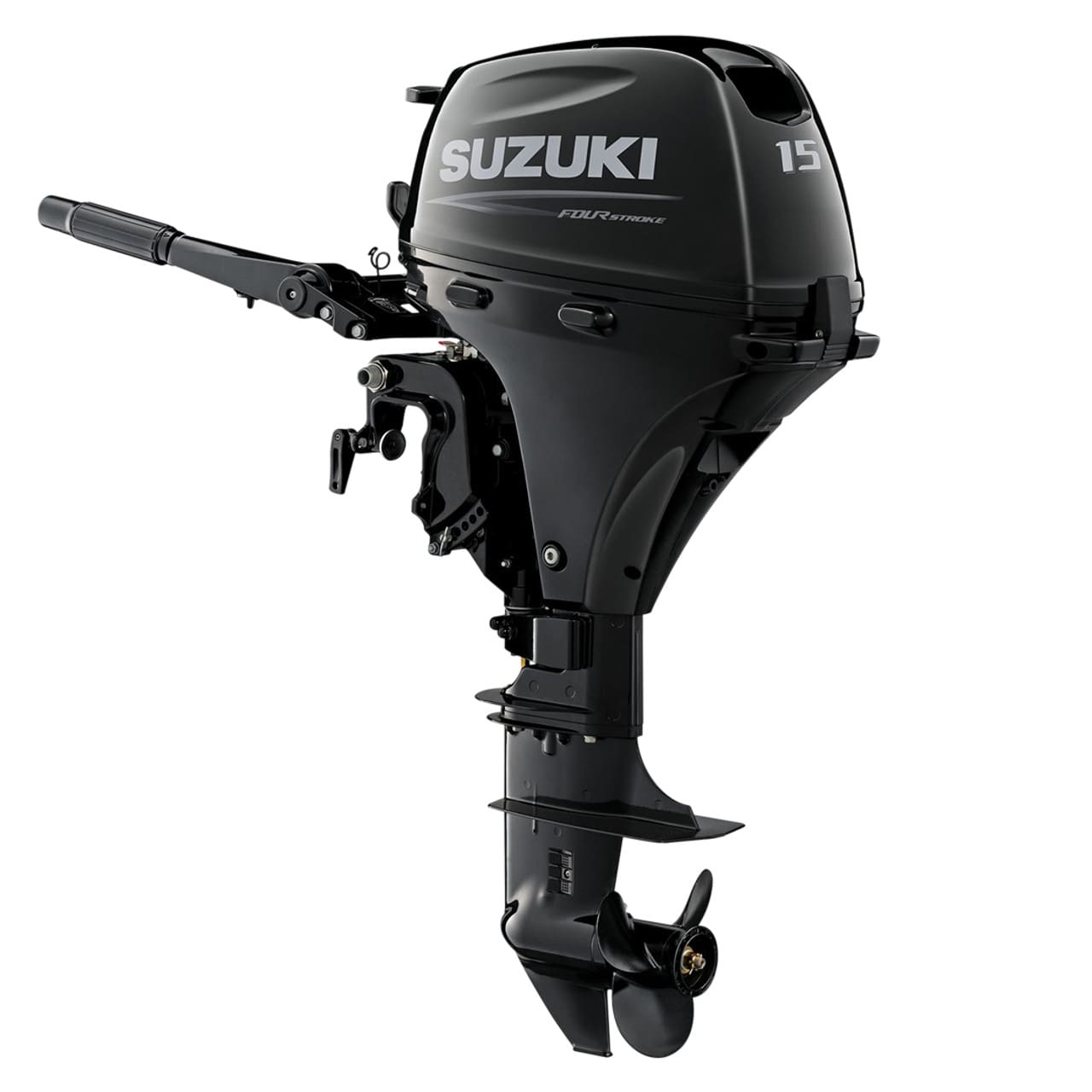

Suzuki 15 HP Outboard Motor - Model DF15AEL5
The Suzuki DF15AEL5 is a 15 HP long shaft EFI outboard with electric start and tiller steering, built for small boats and dinghies with a 20" transom. At just 108 lbs, it balances portability with reliable four-stroke performance.
Equipped with Suzuki’s battery-less EFI system, the DF15AEL5 delivers easy starts, smooth acceleration, and excellent fuel economy without the need for a separate battery. The manual tilt system provides simple and durable trim adjustments, while the included 3.1-gallon fuel tank and line allow for extended trips on the water.
A 12V 145W alternator is built in, making this outboard capable of powering electronics or charging batteries. With a saltwater-rated anti-corrosion finish, this motor is engineered for long-lasting durability in both fresh and saltwater environments.
Suzuki DF15AEL5 Specifications
| MODEL | DF15 AEL5 |
| WEIGHT | 108.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 15 HP |
| SHAFT LENGTH | 20" (Long) |
| STEERING | Tiller |
| STARTING | Electric |
| TRIM & TILT | Manual |
| FUEL DELIVERY | EFI |
| FUEL TANK | 3.1 Gallon External Tank & Fuel Line (Included) |
| CYLINDER(S) | 2 |
| DISPLACEMENT | 327 cc (20.0 cu in) |
| BORE & STROKE | 60.4 x 57 mm (2.38 x 2.24 in) |
| RPM RANGE | 5000 – 6000 RPM |
| IGNITION SYSTEM | Digital CDI |
| INDUCTION SCAVENGING | SOHC |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 33.8 fl oz (1000 mL) |
| LUBRICATION | Wet Sump; Trochoid Type Cam-Driven Oil Pump |
| ALTERNATOR | 12V 145W 12A |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 2.08:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (front-mounted lever) |
| PROPELLER | 3-Blade Aluminum 9.25" Dia. x 9.0" Pitch |
| INTERNAL BATTERY | No |
Engine Specifications
| Horsepower | 15 HP |
|---|---|
| Cylinders | 2 |
| Shaft Length | 20" |
| Weight | 108.0 lb |
| Steering | Tiller |
| Throttle & Shift Control | Mechanical |
| Trim & Tilt | Manual |
| Starting | Electric |
| Fuel Delivery | Electronic Fuel Injection |
